Bowing Lamp
An interactive lamp that returns a human bow with a gesture of its own.
Role:
Interaction Design, Arduino Programming, 3D Modeling & Fabrication
Type:
Interactive Object, Physical Computing
Tools:
Arduino Nano 33 BLE, Bluetooth, Fusion 360, 3D Printing
Year:
2024
Bowing Lamp
An interactive lamp that returns a human bow with a gesture of its own.
Role:
Interaction Design, Arduino Programming, 3D Modeling & Fabrication
Type:
Interactive Object, Physical Computing
Tools:
Arduino Nano 33 BLE, Bluetooth, Fusion 360, 3D Printing
Year:
2024
Bowing Lamp
An interactive lamp that returns a human bow with a gesture of its own.
Role:
Interaction Design, Arduino Programming, 3D Modeling & Fabrication
Type:
Interactive Object, Physical Computing
Tools:
Arduino Nano 33 BLE, Bluetooth, Fusion 360, 3D Printing
Year:
2024
Overview
Overview
Overview
Bowing Lamp is an interactive table lamp that responds to a person's bow by bowing back and illuminating its light.
Inspired by Japanese bowing etiquette, the project explores how a familiar household object can take part in a cultural gesture. Rather than simply responding to a command, the lamp acknowledges the person interacting with it, turning an ordinary action into a small moment of reciprocity.
Developed as a collaborative project, I primarily worked on the Arduino programming and interaction system, while also contributing to the 3D modeling and physical fabrication.
Bowing Lamp is an interactive table lamp that responds to a person's bow by bowing back and illuminating its light.
Inspired by Japanese bowing etiquette, the project explores how a familiar household object can take part in a cultural gesture. Rather than simply responding to a command, the lamp acknowledges the person interacting with it, turning an ordinary action into a small moment of reciprocity.
Developed as a collaborative project, I primarily worked on the Arduino programming and interaction system, while also contributing to the 3D modeling and physical fabrication.
Bowing Lamp is an interactive table lamp that responds to a person's bow by bowing back and illuminating its light.
Inspired by Japanese bowing etiquette, the project explores how a familiar household object can take part in a cultural gesture. Rather than simply responding to a command, the lamp acknowledges the person interacting with it, turning an ordinary action into a small moment of reciprocity.
Developed as a collaborative project, I primarily worked on the Arduino programming and interaction system, while also contributing to the 3D modeling and physical fabrication.
Concept & Interaction
Concept & Interaction
Concept & Interaction
The project began with a speculative design brief to create an absurd object for a hotel in Japan. We drew inspiration from bowing, a gesture commonly used to express greeting, gratitude, and respect in Japanese culture.
We imagined a table lamp that could return a guest's bow, transforming a familiar object into something unexpectedly polite. When a person bows, the lamp gently lowers its head in response and lights up, creating a playful exchange between human and object.
The project began with a speculative design brief to create an absurd object for a hotel in Japan. We drew inspiration from bowing, a gesture commonly used to express greeting, gratitude, and respect in Japanese culture.
We imagined a table lamp that could return a guest's bow, transforming a familiar object into something unexpectedly polite. When a person bows, the lamp gently lowers its head in response and lights up, creating a playful exchange between human and object.
The project began with a speculative design brief to create an absurd object for a hotel in Japan. We drew inspiration from bowing, a gesture commonly used to express greeting, gratitude, and respect in Japanese culture.
We imagined a table lamp that could return a guest's bow, transforming a familiar object into something unexpectedly polite. When a person bows, the lamp gently lowers its head in response and lights up, creating a playful exchange between human and object.
Building the Mechanism
Building the Mechanism
Building the Mechanism
To connect the human gesture with the lamp's movement, we developed a wireless system using two Arduino Nano 33 BLE boards.
A motion sensor in the head-worn Arduino detects the angle of the user's bow and sends a signal via Bluetooth to the second Arduino inside the lamp. The receiving board then controls a servo motor to move the lamp's head and activates the LED light.
Through repeated testing, we refined the timing and speed of the lamp's response. Introducing a slight delay and a slower bow made the movement feel more deliberate and graceful, closer to the rhythm of a respectful human gesture.
We also added a battery holder to the wearable device, allowing it to operate wirelessly and making the interaction more comfortable to perform.
To connect the human gesture with the lamp's movement, we developed a wireless system using two Arduino Nano 33 BLE boards.
A motion sensor in the head-worn Arduino detects the angle of the user's bow and sends a signal via Bluetooth to the second Arduino inside the lamp. The receiving board then controls a servo motor to move the lamp's head and activates the LED light.
Through repeated testing, we refined the timing and speed of the lamp's response. Introducing a slight delay and a slower bow made the movement feel more deliberate and graceful, closer to the rhythm of a respectful human gesture.
We also added a battery holder to the wearable device, allowing it to operate wirelessly and making the interaction more comfortable to perform.
To connect the human gesture with the lamp's movement, we developed a wireless system using two Arduino Nano 33 BLE boards.
A motion sensor in the head-worn Arduino detects the angle of the user's bow and sends a signal via Bluetooth to the second Arduino inside the lamp. The receiving board then controls a servo motor to move the lamp's head and activates the LED light.
Through repeated testing, we refined the timing and speed of the lamp's response. Introducing a slight delay and a slower bow made the movement feel more deliberate and graceful, closer to the rhythm of a respectful human gesture.
We also added a battery holder to the wearable device, allowing it to operate wirelessly and making the interaction more comfortable to perform.






Form & Fabrication
Form & Fabrication
Form & Fabrication

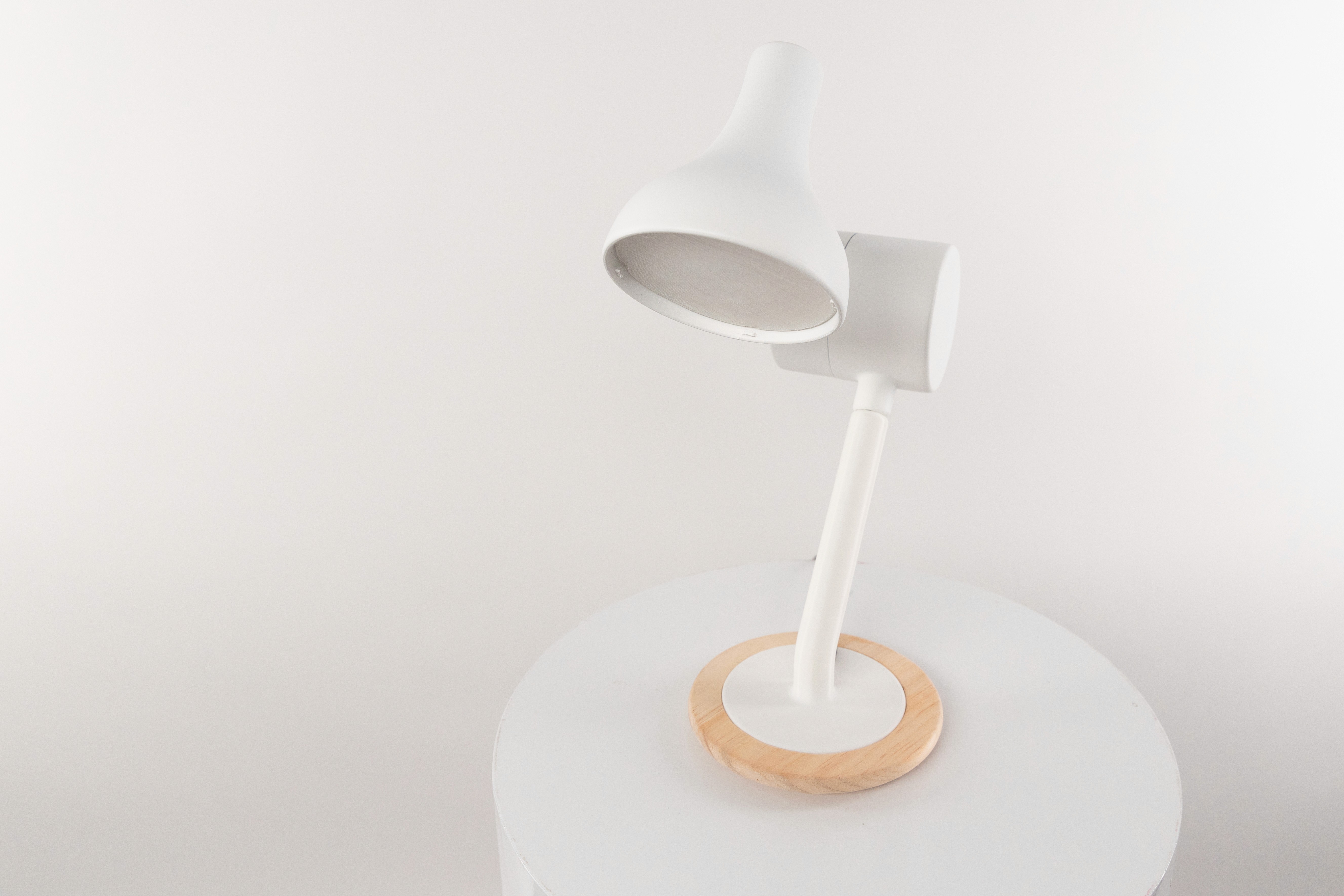

Inspired by the understated appearance of MUJI lamps, we developed a custom design in Fusion 360 and fabricated the components through 3D printing.
We tested three different lamp head sizes to find the right balance between appearance and mechanical performance. The larger versions placed too much demand on the servo motor, so we selected the smallest design to achieve a more reliable bowing motion.

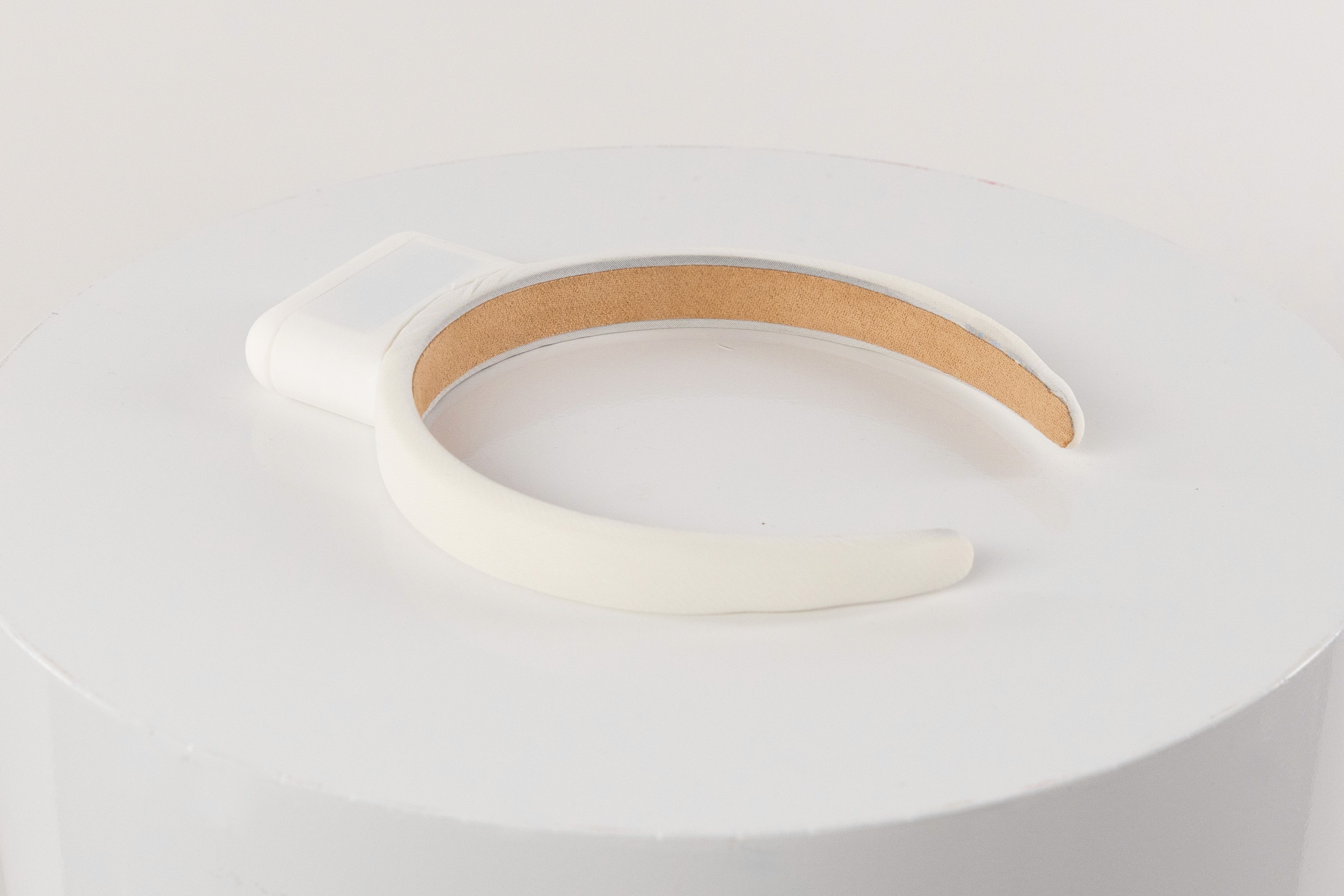

For the wearable sensor, we designed a compact enclosure that attaches to a headband, keeping the Arduino securely positioned while allowing the user to move naturally.
Inspired by the understated appearance of MUJI lamps, we developed a custom design in Fusion 360 and fabricated the components through 3D printing.
We tested three different lamp head sizes to find the right balance between appearance and mechanical performance. The larger versions placed too much demand on the servo motor, so we selected the smallest design to achieve a more reliable bowing motion.
For the wearable sensor, we designed a compact enclosure that attaches to a headband, keeping the Arduino securely positioned while allowing the user to move naturally.
Inspired by the understated appearance of MUJI lamps, we developed a custom design in Fusion 360 and fabricated the components through 3D printing.
We tested three different lamp head sizes to find the right balance between appearance and mechanical performance. The larger versions placed too much demand on the servo motor, so we selected the smallest design to achieve a more reliable bowing motion.
For the wearable sensor, we designed a compact enclosure that attaches to a headband, keeping the Arduino securely positioned while allowing the user to move naturally.






Final Outcome
Final Outcome
Final Outcome

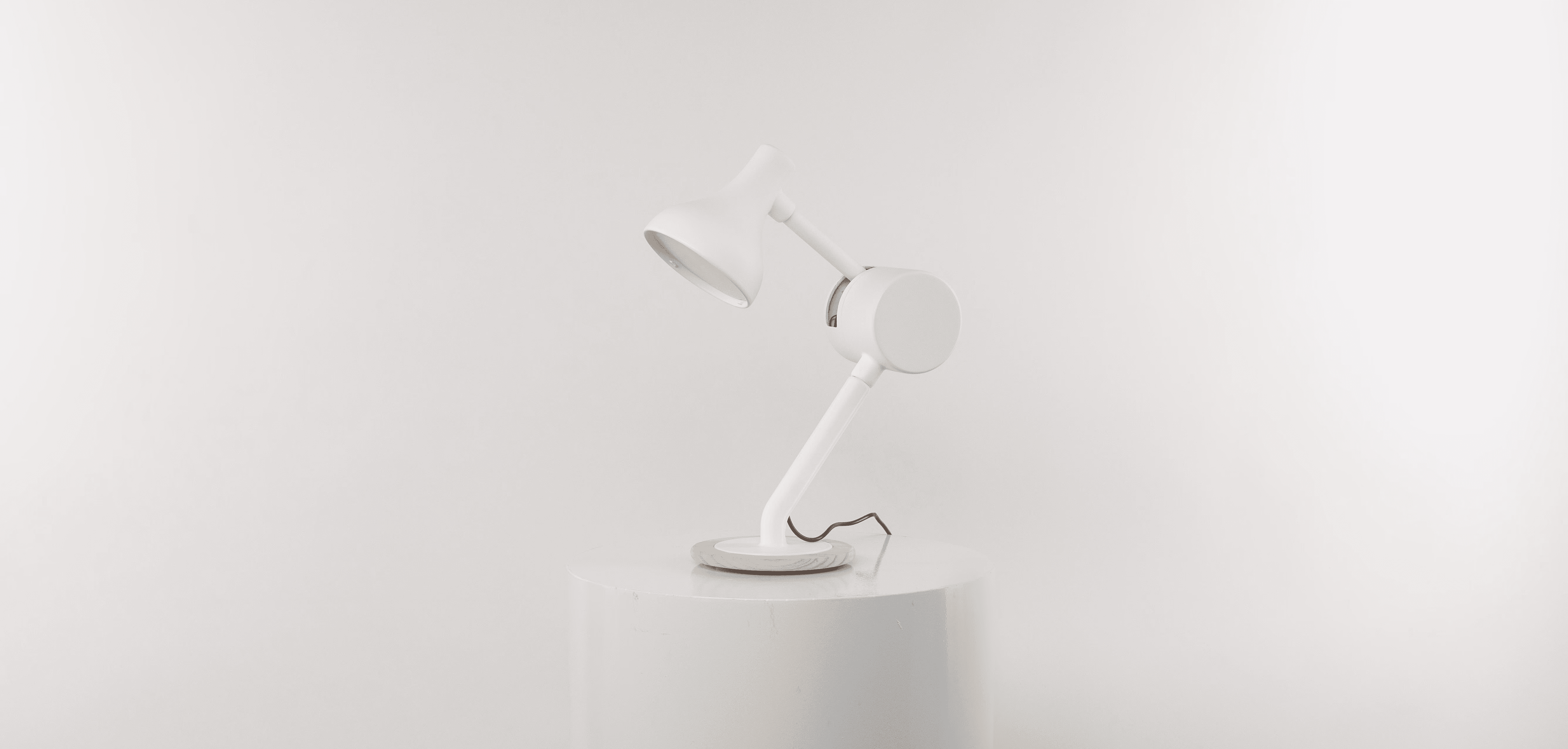

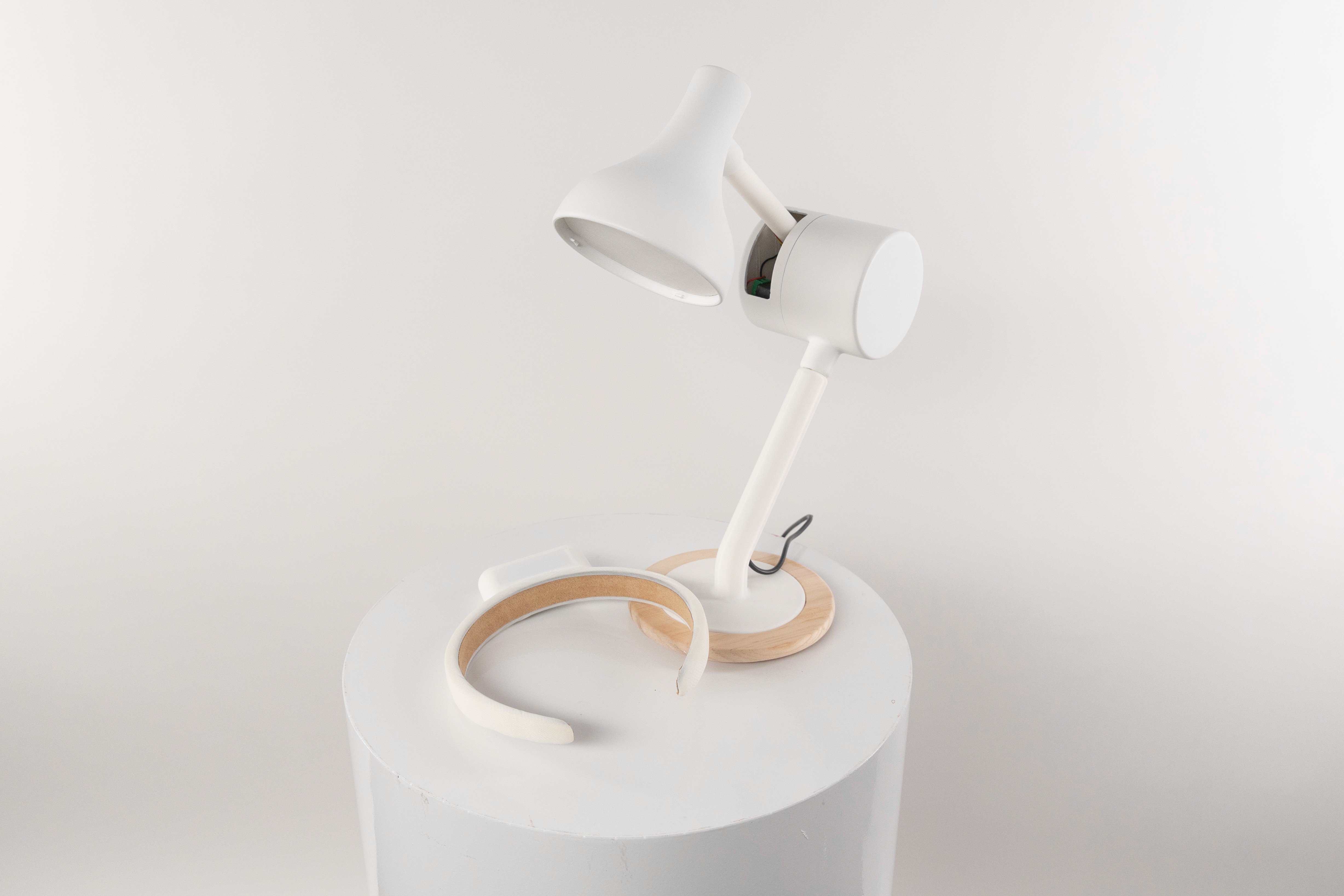

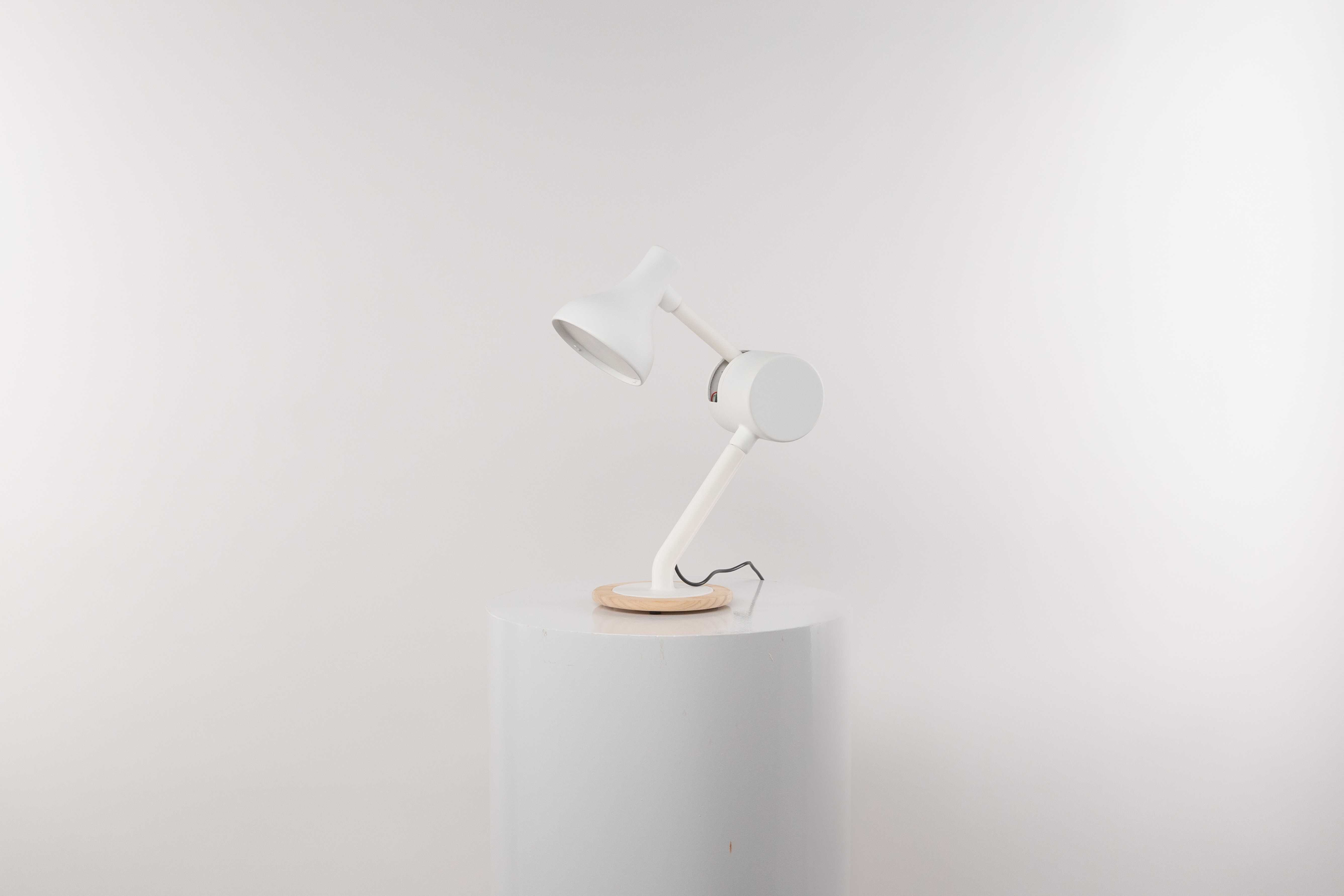

The final prototype brings together gesture detection, wireless communication, mechanical movement, and lighting in a single interactive object.
By returning a person's bow, the lamp turns a simple everyday interaction into an unexpected moment of acknowledgment.
The final prototype brings together gesture detection, wireless communication, mechanical movement, and lighting in a single interactive object.
By returning a person's bow, the lamp turns a simple everyday interaction into an unexpected moment of acknowledgment.
The final prototype brings together gesture detection, wireless communication, mechanical movement, and lighting in a single interactive object.
By returning a person's bow, the lamp turns a simple everyday interaction into an unexpected moment of acknowledgment.
